Summary

The Extensions can be applied to the boxed controls like Box, Layout Container, Text, Header/Footer Area, Slider, Image, etc to achieve different layout and visual effects.


Layout

Align Content

USED FOR: outer control (Container, Section, etc). The effect works for all inner controls.


This extension uses flexbox and aligns controls inside container to which you applied "Align Content" extension. It does not align individual controls.

Content Width - used to set the width for inner content area which contains inner controls. Align Content extension is positioning this area according to the chosen option.


Example:


Fix On Scroll

USED FOR: the control that you would like to fix on scroll (Hmenu, Container, etc).

This Extension toggles fixed position of the element on page scrolling.
Based on bootstrap Affix:
http://getbootstrap.com/javascript/#affix

Flex Column

USED FOR: separate Column inside Columns control. Use in combination with Columns Height: FillHeight(Flexbox).

This extension uses flexbox and stretches container inside column for 100% height.

Full Background

HeadingAndLine

This Extension is used for headings (Page title, Block header, Headline, Headings, etc).
With this extension you can create various types of title underlines:


To create basic underline please follow these steps:

  1. add relative position for the heading controls, e.g. Block header
  2. add HeadingAndLine extension to the heading control
  3. there are two tabs for Before and After lines:
  4. switch to After Line tab to add bottom underline.
  5. open Shape Options (see the screenshot above)
  6. add top border under the Border tab:
  7. go to the Arrange tab and specify the width for the underline.
    To center the underline you should set left and right parameters to 0 and add margin auto under the Padding and Margin tab:

In fact, this extensions utilizes css :before and :after css pseudo-elements. Therefore you can create a much more effects based on these pseudo-elements. But this requires special css skills.

Set Page Width

Set Sheet width

Basic

Animation

This Extension applies various animation effects to the controls.


Expand To Bottom

Stretches container to the bottom on short pages. Used to create sticky Footer.


ParallaxBackground

This extension enables Parallax affect for container's background.
NOTE: The effect applies background-attachment: fixed; to the image. It means that the background will be fixed with regard to the viewport. This may affect the visibility of the image.

Style

Balloon

This Extension applies nice Balloon effect to the boxed elements.


NOTE: To work correctly the control to which you apply this extension should have specified relative position. Please see more details here.

Paper Shadow

This Extension creates nice shadow corners effect:


NOTE: To work correctly the control to which you apply this extension should have specified relative position. Please see more details here.

Shadow Inner Out

This Extension applies inner and/or outer Shadow to the selected boxed control.


NOTE: To work correctly the control to which you apply this extension should have specified relative position. Please see more details here.

Texture Overlay

This Extension adds overlay layer on top of the background of the control. This layer is located under the control's content.

Example:

Original Layout Container control with Text


Layout Container control with Texture Overlay extension (semitransparent layer with black fill color)


Texture Overlay extension settings


NOTE: To work correctly the control to which you apply this extension should have specified relative position. Please see more details here.


Image To Background

This Extension sets the selected Image as page background.


Scale & Crop

The Scale & Crop effect renders image inside Image controls as a background image.
This Extension can be applied to Image control, TextGroup Image, Post Image, etc.


Hyperlink

Smooth Scrolling

This Extension enables smooth page scrolling to the anchor.
Can be applied to menu controls: Horizontal Menu, Top menu, Vertical Menu, and HTML, Text and other controls with links.

Additional Settings:

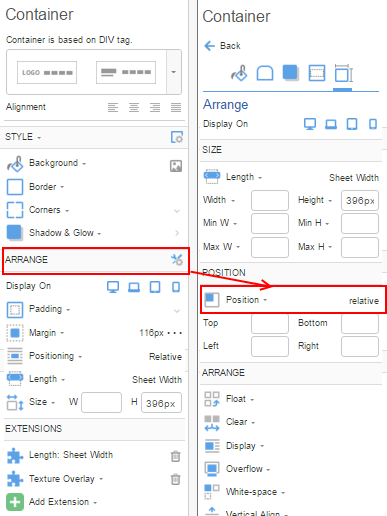

Some of the Extensions utilize css :before and :after css pseudo-elements. Therefore the control to which you apply extension should have specified relative position. The position ca be specified under the Arrange tab of the More Options level of the left property editor panel.
